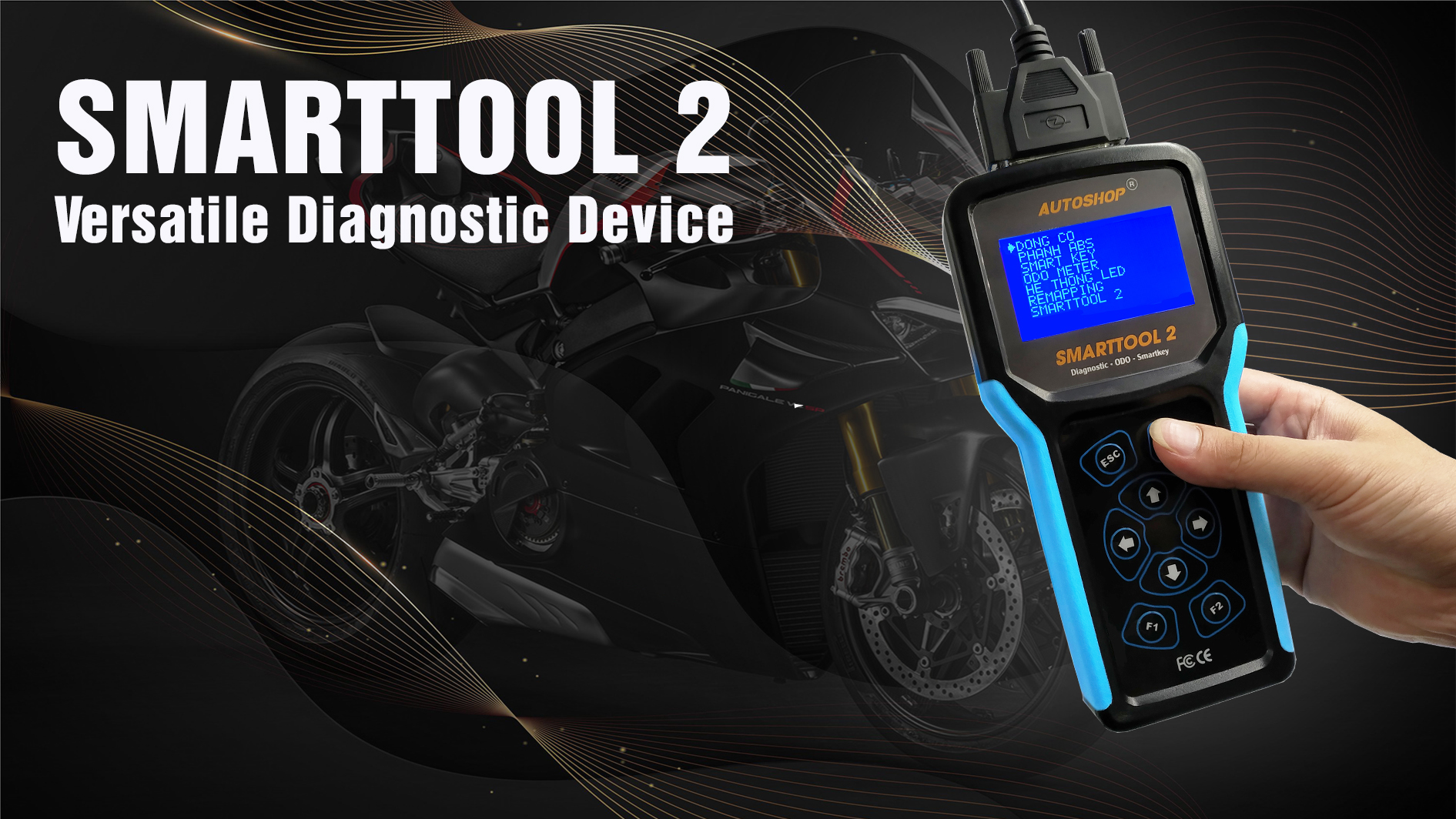

SMARTTOOL2 - Versatile Diagnostic Device

• SMARTTOOL2 is a handset diagnostic tool that was researched and produced in Vietnam, this multifunction device is used for motorcycles equipped with PGM-FI electronic fuel injection, anti-lock braking system, smart key system, immobilizer system, odometer system, LED lighting system. In addition, SMARTTOOL2 also integrates one of the latest technology which is remapping, tuning and opening the RPM limit, adjusting the A/F for models Honda, Yamaha, Piaggio/Vespa and Suzuki
• The tool with a simple interface and easy to use
• ALLMOTO app was used free for searching electrical circuit diagram and repair guide
• Technology transfer, technical support department
• Using in many languages: English, Vietnamese, Indonesian
• Auto-update on the internet, customers can update by themselves
• Free for update and warranty in 12 months
• Distributors in China, England, France, Italy, Japan, Korea, UAE, Israel, Indonesia, Thailand, Myanmar and other countries
• Support all motocycles: HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM, KYMCO
• Support ECU/ECM manufacturers: Shindengen, Keihin, Denso, Magneti marelli



A. MAIN FUNCTIONS

1. Engine and ABS diagnostic system

• Supporting motorcycles' diagnosis and error analysis via OBD standards such as Kline or Can bus protocols, supporting the latest motorcycles until 2023.

2. Smart key system

• Programming and setting up the smart key system when the key is lost, adding keys, and synchronizing when replacing parts.

3. Immobilizer security system

•  Reading, writing, and resetting security codes in the ECU, programming when the keys are lost, or adding new keys.

4. ODO system

•  Reading, writing, resetting, and storing data, ODO values saved in the EEPROM memory of the dashboard.

5. LED technology system

• Checking the operation and activating the LED light system.

6. ECU Remap and Tuning

• Optimizing the power and operation of ECM, adjusting fuel injection timing, ignition timing, on/off error codes, and enforcement mechanisms in the ECM.

7. Sensor signal simulation

•  Simulating and replacing various sensor signal types such as CKP, VSS, MAP, TW, TPS, IAT, and O2...

8. Sensor testing

•  Measuring, and checking operations and values of sensors such as CKP, VSS, MAP, ECT, TPS, IAT, and O2 to determine sensor status.

9. Active test component

•  Measuring, and simulating ECM control signals such as injectors, Mobin, ISCI/IACV with basic sensor signals such as CKP, VSS, MAP, TW, TPS, IAT, O2, injectors, and Mobin.

10. Battery testing

•  Testing the capacity, quality of the battery, and the operation of the generator system.

B. DETAILS OF SOME FUNCTIONS

1. Diagnostic engine system/ PGM - FI system

• Auto seach motobike
• Read current and history DTC
• Erase DTC, reset ECM
• Engine Live Data
• Check A/F ratio
• Analysis Emission
• View ECU/ ECM Info
• Adjust CO Value (A/F ratio)
• Check sensor operation
• Active test component
• Software upgrade ECU for Honda and Piaggio/Vespa
• Environmental factor / Altitude setting
• Reset the idle air control valve IACV / ISC
• Reset / set the "0" point position of the throttle position sensor
• Erase error P0611 full EEPROM memory of Piaggio / Vespa vehicles
• Supports all motorcycle HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM and KYMCO

2. Diagnostic ABS system

• Read current and history DTC
• Erase DTC
• ABS Live Data
• Active test component
• View ACU Info
• Support motorcycl: HONDA, YAMAHA and PIAGGIO

 3. ECU Remap, tuning

• Adjusting the Air/Fuel ratio (A / F)
• Remap, tune, and open the rpm limit by DLC cable
• Tuning/remap for all ECU Honda ACG (From 2013 to 2023)
• Handling some car fuel consumption cases with high injection time, fuel saving, low Garanti
• Remap, and adjust at the right time and right range
• Improve capacity without wasting fuel
•  Remapping helps optimize engine power and optimize the A/F ratio
• MAP OFF smart key, OFF 88 error code - Error in EVAP valve control circuit
• All of the MAP files were run in real configuration, tested HP, tried by Dyno, optimized with AFR (optimize air-to-fuel ratio A/F)

List of supported motor

4. Smart key/ Keyless Honda, Yamaha and Suzuki

• Read KEYID from smart box when all keys lost
• Read ECMID from smart box
• Read/reset ECMID from ECM
• Erase key lost
• Erase the missing key code
• Reflash EEPROM data of smart box
• Register new keys in the all keys lost case.
• Add key by key
• Check the synchronization between key and smart box
• Re-use the Honda “used key”
• Change ON / OFF key status
• Sync smart box and ECM automatically
• Replace new ECM
• Register up to 6 keys at once bike Honda

List:

• HONDA: AIRBLADE (2018-2021), CLICK 125i (2018-2021), LEAD 125 (2017-2021), PCX( 2016-2021), SH 125/150/300(2016-2021), SH MODE ( 2016-2020), VISION (2018-2021), VARIO 125/150 (2018-2021), ADV, X-ADV 750, FORZA 300 ( 2018-2020), SCOPPY (2017-2021), X-ADV 750 2021, FORZA 300 2021
• YAMAHA: AEROX (2018-2021), GRANDE ( 2018-2021), JANUS ( 2018-2021), NVX (2018-2021) ,LATTE (2020-2021), FREEGO (2020-2021) QBIX, XMAX, NMAX,  T-MAX 530i, T-MAX DX, T-MAX SX SPORT, T-MAX IRON MAX (2015-2021)
• SUZUKI: RAIDER FI (2016-2020), GSX FI (2016-2020).
• Supported part number: K12, K44, K59, K66, K01, K02, K77, K78, K29, K36, K96, K97, K1F, K1R, K1N, K1Z, K1Y, K0R, K0S, K2C, K1B, K1W...

5. Immobilizer system PIAGGIO/VESPA

• Register the new keys in the all keys lost case.
• Reset, erase all keys of IC / ECM.
• Support register new keys.
• Support list : AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4, PGN04/PGS02/PGS06/PGT01.

Click on here to get more details about the list of motors and the function - programming immobilizer Piaggio/ Vespa

6. LED system

• Activate the LED system
• Support checking LED system

7. Odometer adjustment

• Read the current mileage
• Correct odometer value of motorcycle dashboard.
• Restore the original data
• Automatic correct odometer
• All moto, motobike Honda, Yamaha, Suzuki, Kawasaki and Piaggio

List model

• HONDA: Airblade (2013-2019), Airblade 125/150 2020, Click (2013 -2020), Forza 2018, Msx 125/150, Future Neo, Future X, Lead 125 (2013-2020), PCX( 2008-2019), PCX 2021, SH 125/150/300(2015-2016), SH 125/150(2017-2019), SH 125/150 2020, SH Mode ( 2015-2020), SH Mode 2021, Sonic 125, Vario 125/150 (2013-2020), Vision 2021, Wave 125, Winner 150, Winner X, Zoomer X, Scoopy 2018, XADV 2018, CUB, Beat 2018, Beat Stress, CBR 15DR/150/250, CBR 500/500F/650, CBR 1000/ 1000RR, CRF 250…
• Hãng YAMAHA: Aerox, Acruzo, Janus, Nvx, TFX, MSLAZ, Acruzo, Exciter 150 (2014-2021), Fz150/150i/FZ16, Grande, Nouvo LX/4, Nouvo SX/5, Qbix, R1/ R6, R15/RR15D,  R15 2016, R15 , Free Go 2019, Nmax ABS, Grand Filano, Xmax, Tmax, MT07, MT09, FreeGo, Latte, Vixion 2018...
• PIAGGIO/VESPA: V4_ 50cc, V6_ 50cc, Liberty( 2017-2019), Medley, Primavera (2017-2019), Sprint (2017-2019), Vespa 2020, with Logo _EEPROM_R5F, no Logo _EEPROM_R5F
• SUZUKI: An150, En 150, Raider (2012-2015), Gsx ( 2009-2015), Gsx Fi (2016-2019), Raider Fi( 2016-2019)…
• KAWASAKI: Z1000R/Ninja, Z125, NINJA 250, VERSY 650, Z300, Z900,…

8. List of accessories
